Automatic differentiation

This page shows how to use Automatic Differentiation in combination with an EPG simulation.

The AD package tested is ForwardDiff.jl, maybe it works with others with some minor modification to the following code.

Load package

using EPGsim, ForwardDiff, CairoMakie

Building signal function

function MESE_EPG(T2,T1,TE,ETL,delta)
  T = eltype(complex(T2))
  E = EPGStates([T(0.0)],[T(0.0)],[T(1.0)])
  echo_vec = Vector{Complex{eltype(T2)}}()

  epgRotation!(E,pi/2*delta, pi/2)
  # loop over refocusing-pulses
  for i = 1:ETL
    epgDephasing!(E,1)
    epgRelaxation!(E,TE,T1,T2)
    epgRotation!(E,pi*delta,0.0)
    epgDephasing!(E,1)
    push!(echo_vec,E.Fp[1])
  end

  return abs.(echo_vec)
end;

MESE_EPG (generic function with 1 method)

T = eltype(complex(T2))
E = EPGStates([T(0.0)],[T(0.0)],[T(1.0)])

Define parameters for simulation and run it

T2 = 60.0
T1 = 1000.0
TE = 7
ETL = 50
deltaB1 = 1

TE_vec = range(TE,TE*ETL,ETL)

amp = MESE_EPG(T2,T1,TE,ETL,deltaB1)

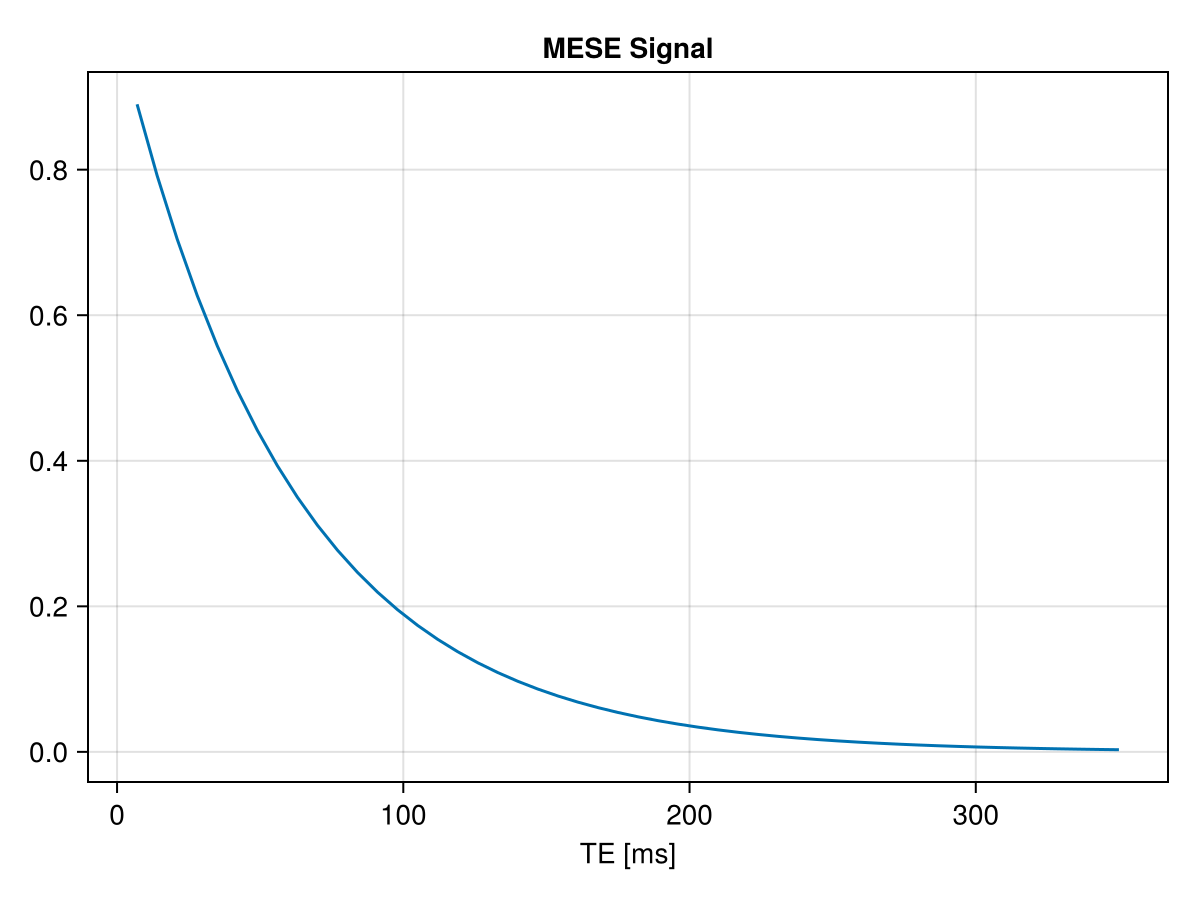

lines(TE_vec,abs.(amp),axis =(;title = "MESE Signal", xlabel="TE [ms]"))

As expected, we get a standard T2 decaying exponential curve :

\[S(TE) = exp(-TE/T_2)\]

We can analytically derive the equation according to $T_2$ :

\[\frac{\partial S}{\partial T_2} = \frac{TE}{T_2^2} exp(-TE/T_2)\]

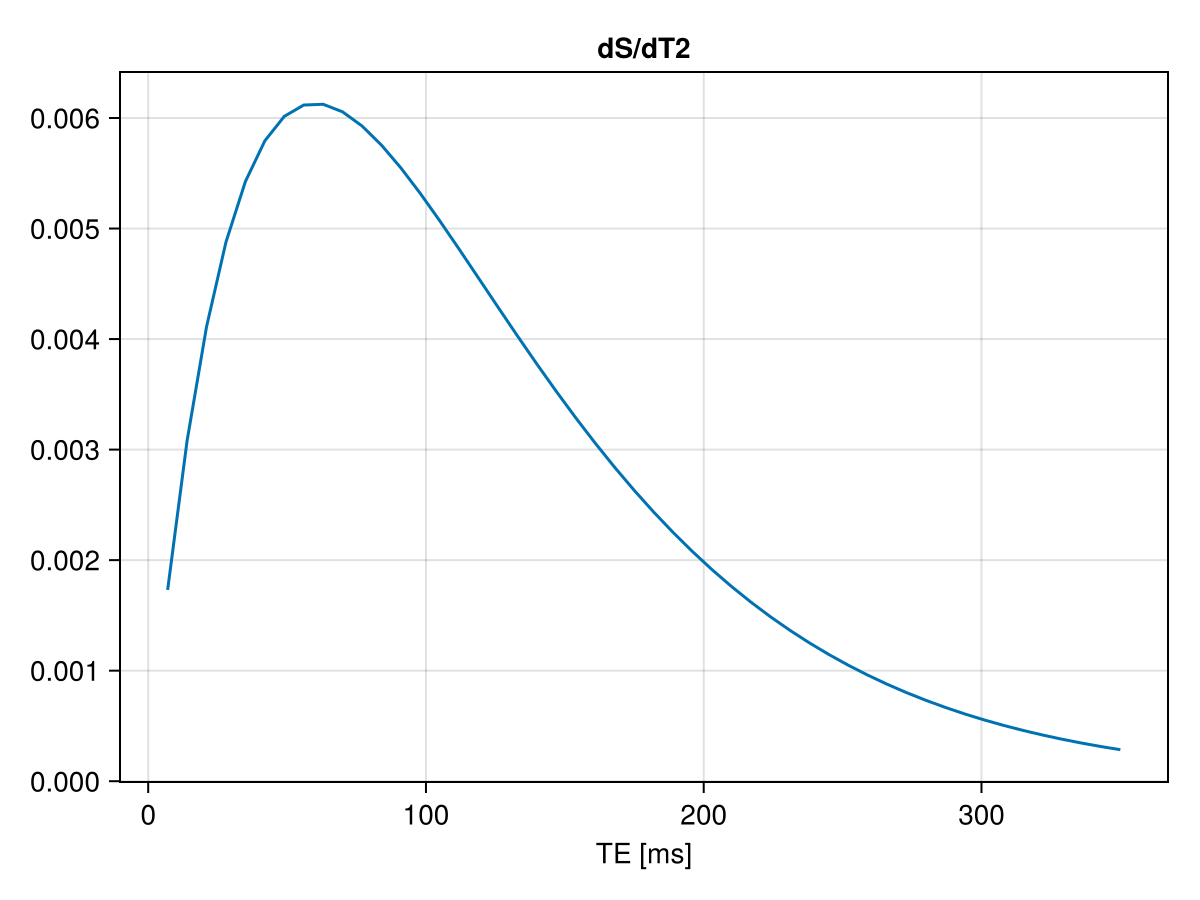

which give the following curves:

df = TE_vec .* exp.(-TE_vec./T2)./(T2^2)

lines(TE_vec,abs.(df),axis =(;title = "dS/dT2", xlabel="TE [ms]"))

Find the derivative with Automatic Differentiation

Because we want to obtain the derivate at multiple time points (TE), we will use ForwardDiff.jacobian :

j = ForwardDiff.jacobian(x -> MESE_EPG(x,T1,TE,ETL,deltaB1),[T2])

50×1 Matrix{Float64}:
 0.0017303256658100462
 0.0030795705357541505
 0.004110680523359161
 0.004877359552123769
 0.005425341694986568
 0.005793495210899777
 0.0060147800749004825
 0.006117077880178194
 0.006123910609445216
 0.0060550626872282855
 ⋮
 0.0006081376174588203
 0.0005540555938388994
 0.0005045101119798131
 0.0004591578599283705
 0.00041767612532404326
 0.0003797624216267488
 0.00034513394687173967
 0.0003135269163676083
 0.0002846958036628789

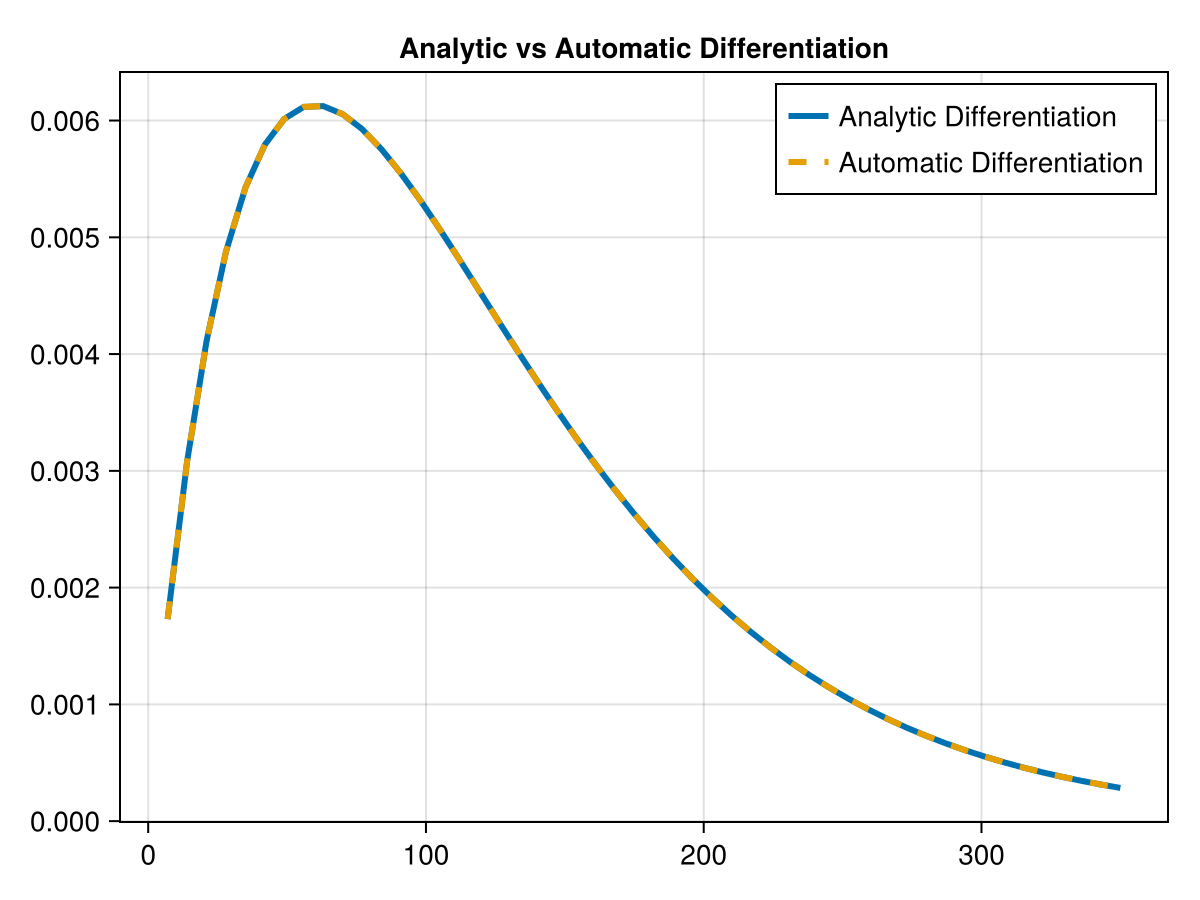

Let's compare it to the analytical equation :

f=Figure()
ax = Axis(f[1,1],title ="Analytic vs Automatic Differentiation")

lines!(ax,TE_vec,abs.(df),label = "Analytic Differentiation",linewidth=3)
lines!(ax,TE_vec,abs.(vec(j)),label = "Automatic Differentiation",linestyle=:dash,linewidth=3)
axislegend(ax)
f

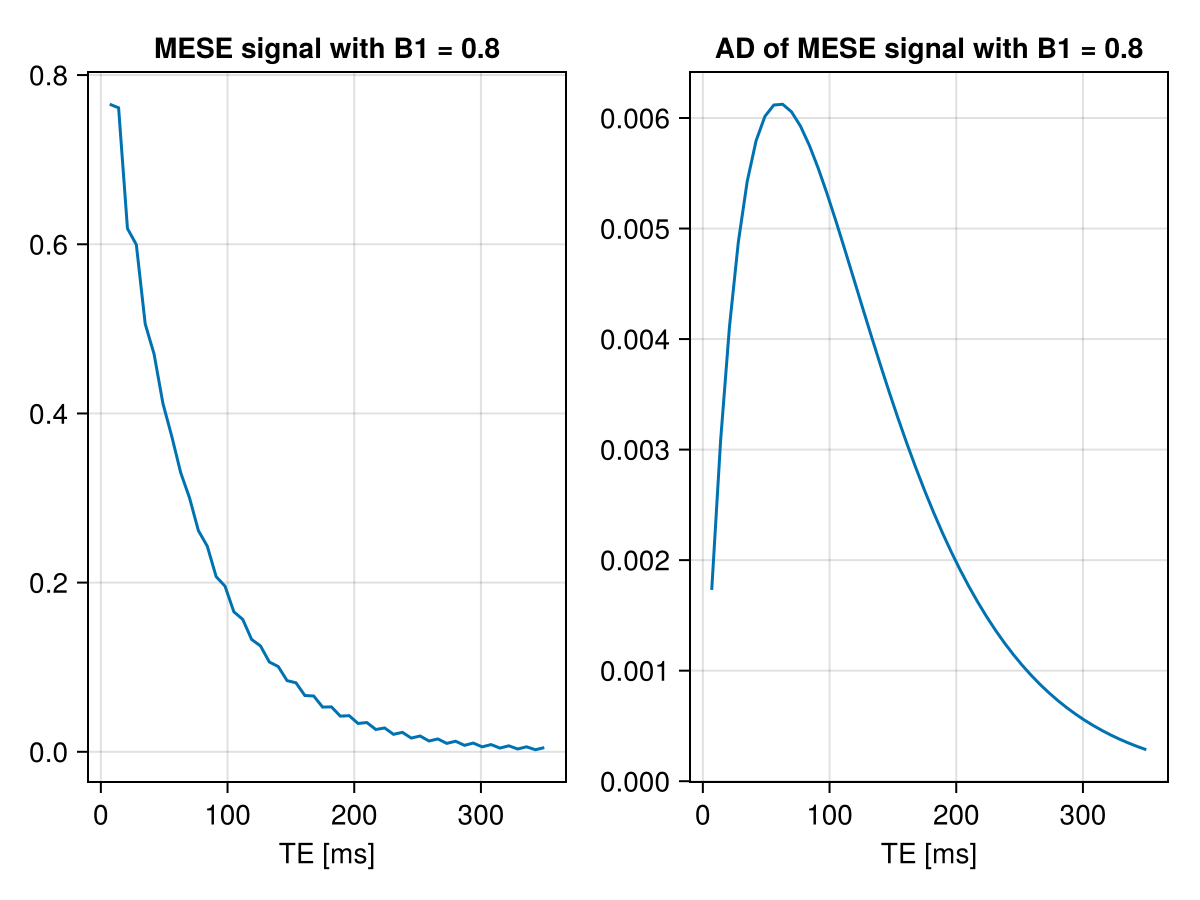

Of course, in that case we don't really need the AD possibility. But if we reduce the B1+ value the equation becomes complicated enough and might lead to error during derivation if we don't use AD.

deltaB1 = 0.8

amp = MESE_EPG(T2,T1,TE,ETL,deltaB1)
j = ForwardDiff.jacobian(x -> MESE_EPG(x,T1,TE,ETL,deltaB1),[T2])

f = Figure()
ax = Axis(f[1,1], title = "MESE signal with B1 = $(deltaB1)",xlabel="TE [ms]")
lines!(ax,TE_vec,abs.(amp))
ax = Axis(f[1,2], title = "AD of MESE signal with B1 = $(deltaB1)",xlabel="TE [ms]")
lines!(ax,TE_vec,df)
f

Differentiation along multiple variables

If we want to obtain the derivation along T1 and T2 we need to change the EPG_MESE function. The function should take as input a vector containing T2 and T1 (here noted T2/T1) :

function MESE_EPG2(T2T1,TE,ETL,delta)
  T2,T1 = T2T1
  T = complex(eltype(T2))
  E = EPGStates([T(0.0)],[T(0.0)],[T(1.0)])
  echo_vec = Vector{Complex{eltype(T2)}}()

  epgRotation!(E,pi/2*delta, pi/2)
  ##loop over refocusing-pulses
  for i = 1:ETL
    epgDephasing!(E,1)
    epgRelaxation!(E,TE,T1,T2)
    epgRotation!(E,pi*delta,0.0)
    epgDephasing!(E,1)
    push!(echo_vec,E.Fp[1])
  end

  return abs.(echo_vec)
end

j2 = ForwardDiff.jacobian(x -> MESE_EPG2(x,TE,ETL,deltaB1),[T2,T1])

50×2 Matrix{Float64}:
 0.00148849    0.0
 0.00267849    1.01626e-6
 0.0036074     3.11376e-9
 0.00424856    1.4929e-6
 0.0048583     2.1588e-7
 0.00505738    1.54224e-6
 0.00547205    4.77635e-7
 0.0053872     1.48187e-6
 0.00561831    5.69176e-7
 0.00541662    1.50582e-6
 ⋮
 0.000653143   6.78441e-7
 0.000604549  -4.24125e-7
 0.000549208   6.53926e-7
 0.000506577  -4.35364e-7
 0.000459283   6.24792e-7
 0.000424782  -4.38279e-7
 0.000383105   5.96601e-7
 0.000354974  -4.40793e-7
 0.00032019    5.75211e-7

Here we can see that the second column corresponding to T1 is equal to 0 which is expected for a MESE sequence and the derivative along T2 gives the same results :

j2[:,1] ≈ vec(j)

true
