Important tips

The relaxationColorMap() function selects the appropriate color-map (in this case, Lipari for T1) and applies logarithm-processing on that color map. The resulting colormap is returned. The "imclip" image should retain the distinction between the "invalid" value of 0 (which is to be displayed as black) and "valid" values that are below loLev (these should be shown in a dark shade of blue). Depending on the calibration of your screen, you may or may not see that distinction.

A simplified processing can be done by

using QMRIColors
cmap = relaxationColorMap("T1")
VIEW(x,c=cmap) # Do not use range limits here!

Again, "VIEW" refers to your favorite viewing software.

If the simplified processing is invoked WITH use of range limits, then the distinction is lost between invalid values and low-but-valid values. See second image in the example below: it represents a circular object with a T1 value that is gradually increasing from top to bottom, but only valid within a circular "object", the outside thereof representing unknown T1 values.

Let's build an example to see the effect.

Create a Synthetic phantom

using QMRIColors
using CairoMakie

# -----  Make test object: gradually increasing T1, but invalid outside a circle
size = 256; center = size÷2+1; radius = 100; origin = CartesianIndex(center,center)
d(x::CartesianIndex, y::CartesianIndex) = √( (x[1]-y[1])^2 + (x[2]-y[2])^2 )
row = [10*i for i in 1:size]
testT1= zeros(size,size)
testT1 .= row

# Set invalid values to 0
allidx = CartesianIndices(testT1)
invalid = allidx[ d.(origin, allidx) .> radius];
testT1[invalid] .= 0
nothing

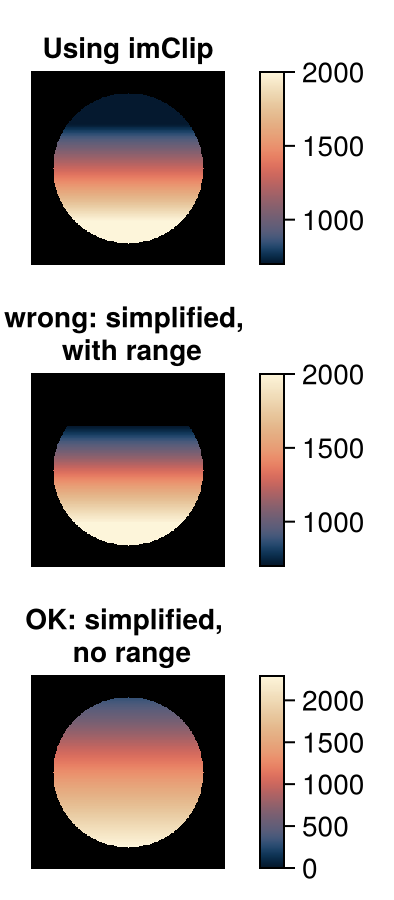

Display the example in 3 ways

# -------------------- Display test object the correct and the wrong way
loLev = 700
upLev = 2000
begin
  f=CairoMakie.Figure()
  ax=Axis(f[1,1],aspect = DataAspect(),title = "Using imClip")
  cmap,imClip = relaxationColorMap("T1",testT1,loLev,upLev)
  h=heatmap!(ax,rotr90(imClip),colormap=cmap,colorrange=(loLev,upLev))
  Colorbar(f[1,2],h)
  hidedecorations!(ax)

  ax=Axis(f[2,1],aspect = DataAspect(),title = "wrong: simplified, \n with range")
  cmap = relaxationColorMap("T1")
  h=heatmap!(ax,rotr90(testT1),colormap=cmap,colorrange=(loLev,upLev))
  Colorbar(f[2,2],h)
  hidedecorations!(ax)

  ax=Axis(f[3,1],aspect = DataAspect(),title = "OK: simplified, \n no range")
  cmap = relaxationColorMap("T1")
  h=heatmap!(ax,rotr90(testT1),colormap=cmap)
  Colorbar(f[3,2],h)
  hidedecorations!(ax)

  # clean up plot
  colsize!(f.layout, 1, Aspect(1,1))
  resize_to_layout!(f)
  f
end

Conclusion

Use the clip version of the images + colormap + the color range

 cmap,imClip = relaxationColorMap("T1",testT1,loLev,upLev)
heatmap(rotr90(imClip),colormap=cmap,colorrange=(loLev,upLev))
